Brand New Solar Controller with Dual USB Ports – Intelligent Regulator for Solar Panels

Product Description:

Optimize your solar power system with the Solar Controller Dual USB Port, designed to regulate and protect your battery while offering multi-functional capabilities. This intelligent regulator is perfect for small home solar systems, providing efficient management of solar energy with a user-friendly LCD display.

Key Features:

• Versatile Voltage Compatibility: Automatically works with 12V and 24V systems. Maximum input voltage is 40V with PV power handling up to 360W (12V) or 720W (24V).
• Dual USB Ports: Provides dual 5V/2A USB outputs for charging devices.
• Battery Protection: Suitable only for lead-acid batteries (OPEN, AGM, GEL). Automatically turns off when battery voltage drops below 9V to protect battery lifespan.
• Adjustable Load Modes: Features three load modes:
  • 1-23H: Load operates from sunset and turns off after a set number of hours.
  • 0H: Dusk to dawn mode; load turns off at dawn.
  • 24H: Continuous load output for 24 hours (excluding under-voltage conditions).

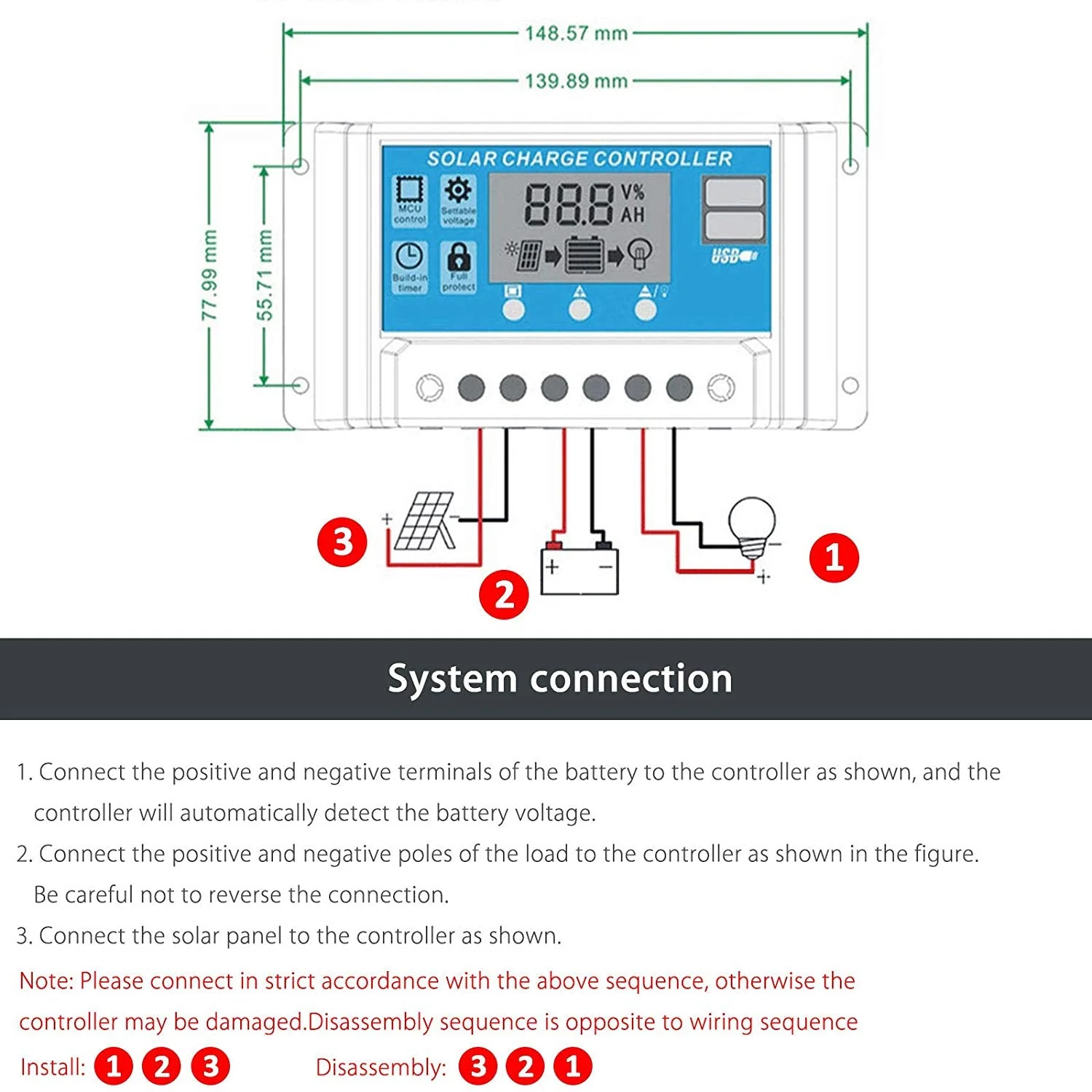

• Easy Installation: Connect the battery before the solar panel for simple setup. Ideal for small home solar systems.

Specifications:

• Material: ABS
• Screen: LCD Display
• Battery Voltage: 12V / 24V
• Charge Current: 10A / 20A / 30A
• Working Temperature: -35°C to 60°C
• Self Consumption: 10mA
• Float Charge Voltage: 13V
• Discharge Stop Voltage: 10.7V
• Discharge Reconnect Voltage: 12.6V
• USB Output: 5V / 2.5A
• Application: Home, Industrial, Commercial

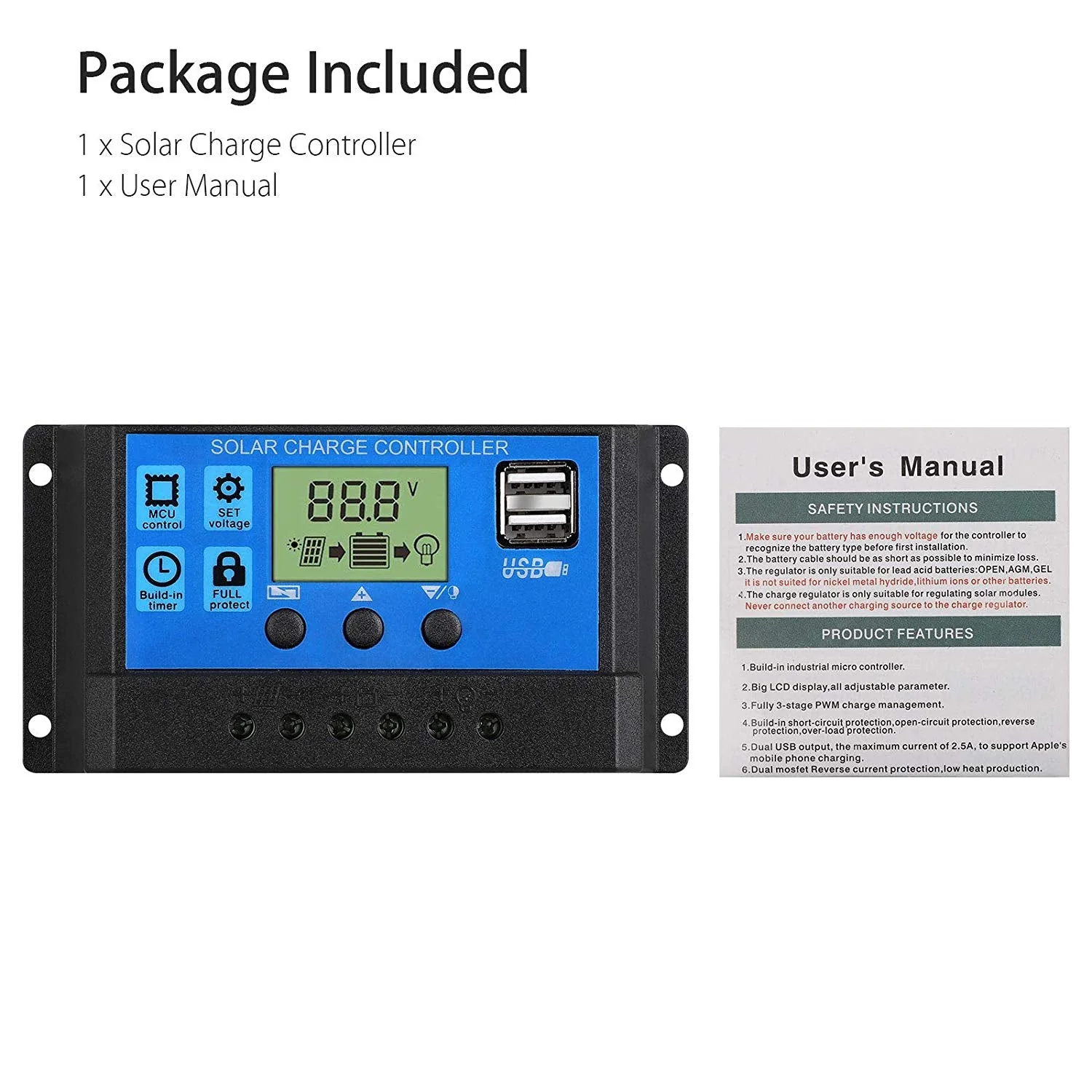

Package Includes:

• 1 x Solar Controller
• 1 x User Manual
