Swimming Spa Pool Thermostat 1.5kW – H15-RS1 | 230V | Thermostat 0–45°C

This spa pool Thermostat is designed for heating water in spa pools and small pools. The unit includes a built-in thermostat, flow switch, and heating element, and is intended for use with a compatible circulation pump and plumbing system.

Features:

• Temperature Control System
  Includes an adjustable thermostat with a temperature range from 0°C to 45°C.
• Circulation Pump Requirement
  Designed for use with a circulation pump rated above 0.5HP to maintain water flow during operation.
• PVC Plumbing Connection
  Fitted with 1.5″ PVC connections for use with compatible SCH 40 piping systems.
• Heating Operation Guidance
  Designed for use with pre-filled water conditions. Insulation cover recommended to help maintain temperature.
• Compact Design
  Unit size allows installation in spa systems with limited space.
• Material Construction
  Housing made from ABS material.
• Flow and Temperature Control Components
  Includes internal control components such as a thermostat and flow switch.
• Application Range

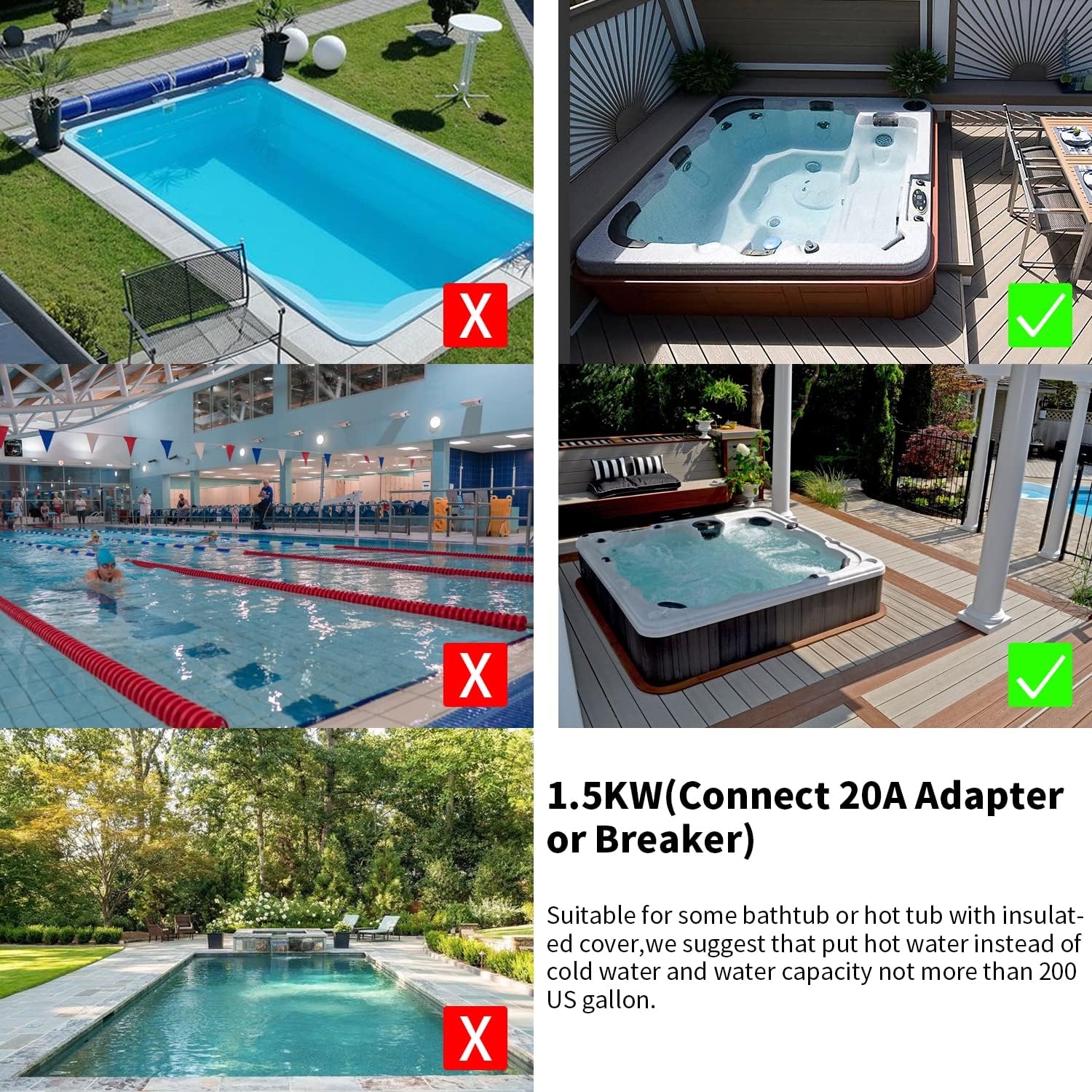

  Suitable for use with spa pools, small pools, whirlpool systems, and similar water heating setups.

Applications:

• Spa pool heating

• Small pool heating systems

• Hydromassage bathtub systems

• Whirlpool and water circulation systems

• Residential outdoor spa setups

Specifications:

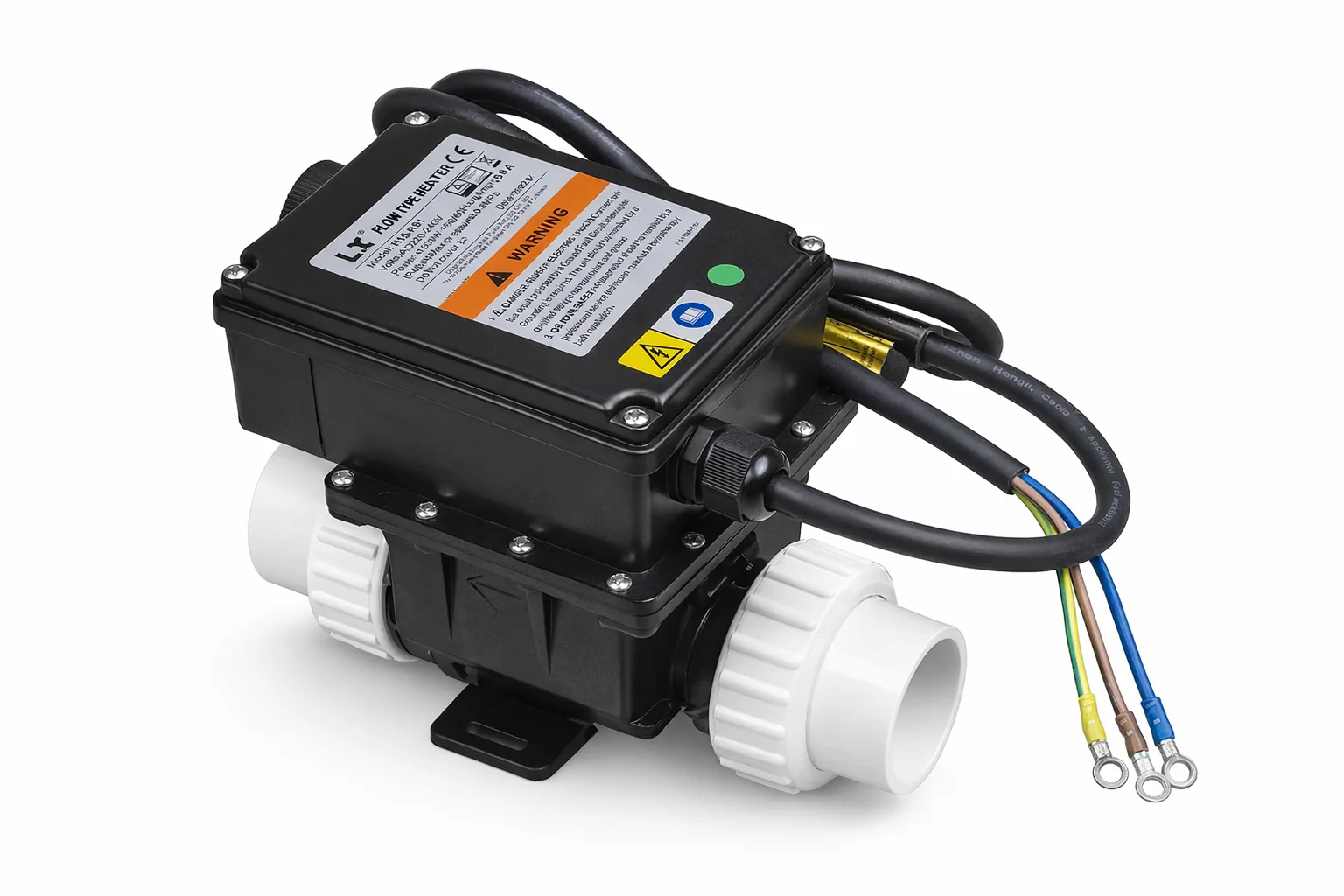

• Model: H15-RS1

• Power: 1.5 kW

• Voltage: 230 VAC

• Frequency: 50/60 Hz

• Current: 7 Amps

• Temperature Range: 0 – 45°C

• Installation Length: 130mm
• Inlet & Outlet: including 2 barrel unions
• Suitable for 1-1/2"/40mm PVC pipe installation (OD 48.3mm)
• Connection Size: 1.5″ PVC Fittings

• Recommended Capacity: Up to 400 gallons

Notes:

• Requires connection to a circulation pump (minimum 0.5HP)
• Designed for use with 1.5″ PVC plumbing system
• Use of insulation cover may assist in maintaining water temperature
• Electrical connection configuration should be confirmed prior to installation

Package Includes:

• 1 × Spa Pool Thermostat Unit (H15-RS1)

This spa pool Thermostat is designed for integration into compatible spa and pool systems with appropriate plumbing and electrical setup.
